How to make outline text in Photoshop
Newer method for Photoshop CC here

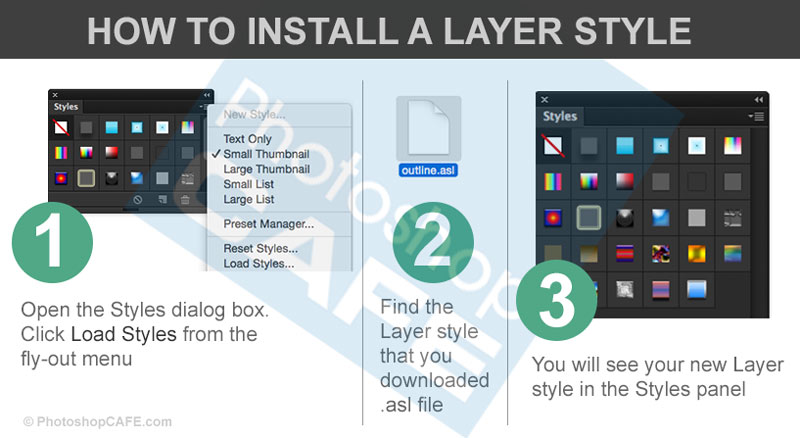

(JUST ADDED: See the bottom of this tutorial for a PSD and a layerstyle that works in Photoshop CS6 and CC)
Start with a blank layer and some text, this will work for shapes too.
Right click/Cmd click on the layer name in the layers pallette. Select rasterize layer. Ctrl/Cmd click on the layer thumbnail to select the type.
Create a new blank layer.
Edit>stroke. I added a 6 pixel stroke here. Make the location center.
Click ok.
Ctrl/Cmd click on the layer thumbnail to select the new stroke.
In the layer palette, turn off the bottom layer, you should see the outline now.
Using the gradient tool: foreground to background linear – Black to white. apply a gradient to the selection.
Now apply the stroke again, this time 1 Pixel and set to outside.
To make the gradient look like metal, use our favorate curves trick.
Image>adjust>curves, use a similar curve to what is shown here.
Now display the bottom layer again and fill with a color or a gradient to get this result.
For a little extra depth apply a layer style to the outline, use a dropshadow.
Here is the result.
Another variation is to hide the fill and just use the outline with a dropshadow.
Here is yet another variation. This is just the previous image inverted. Ctrl/Cmd+I Note for this to work, you must flatten the image first.
Here is another variation. Play around with this effect and have fun.
See you in a week with another new tutorial.
Here is a newer versions of the effect that I have created with a layer style
Also see the tutorial on creating a metal wire text effect as shown here
Access valuable Photoshop extras and goodies for free and much more a
This site uses Akismet to reduce spam. Learn how your comment data is processed.
What do you do when a drop shadow isn't realistic enough? Create a cast shadow. When you see an object...
Smart Objects are very useful because they are non destructive. They can contain images, Illustrator files, RAW files and more....
How to do high end color grading instantly with gradient maps. This Photoshop tutorial shows you how to quickly get...
Why thankye kindly. This was well laid out and extremely helpful.
Sounds like a lot to do for a simple outlining of text. Seems like a rather large oversight for PS to not have something so simple
How hard is it to download an apply a preset? Pretty simple to me.
What would be easier is if PS has a stroke feature in the text tool box. I have since found a simpler way to do it than explained here, but I don’t see why it couldn’t be implemented into a toolbox before rasterizing the layer.
That is how Paint Shop Pro always used to do it. It’s a headache to do it with PS.
Don’t forget this is the old way, they new way is here https://photoshopcafe.com/wire-text-photoshop-tutorial
Why does this look like it’s from Windows 2000? I don’t think the version of photoshop around in 2016 is compatible with anything older than Windows 7 so why was this out of date tutorial posted?
Because I made this tutorial a million years ago, we have been around since 2000 😉
Why not delete or update this page since the info is over ten years out of date? Seriously.
There is a link at the top to the CC version. Many people are on older versions and still find this tutorial very relevant, that’s why.
